Manage Edge Proxy

Use the Protected servers page to enable, disable, reconfigure, or delete a server without reprovisioning it.

​

Protected servers

Navigate to Security → Edge Proxy → Protected servers to view all configured servers. Each server card shows:

​

Enable and disable protection

Use the toggle next to the server name to pause or resume protection without deleting the server.

• Toggle on — starts activation. The card shows Processing (~3 min) while Gcore provisions the proxy. Once complete, status changes to Online and traffic routes through the proxy IP.
• Toggle off — protection pauses immediately. Status changes to Stopped. The proxy IP remains assigned but stops forwarding traffic.

​

Edit a server

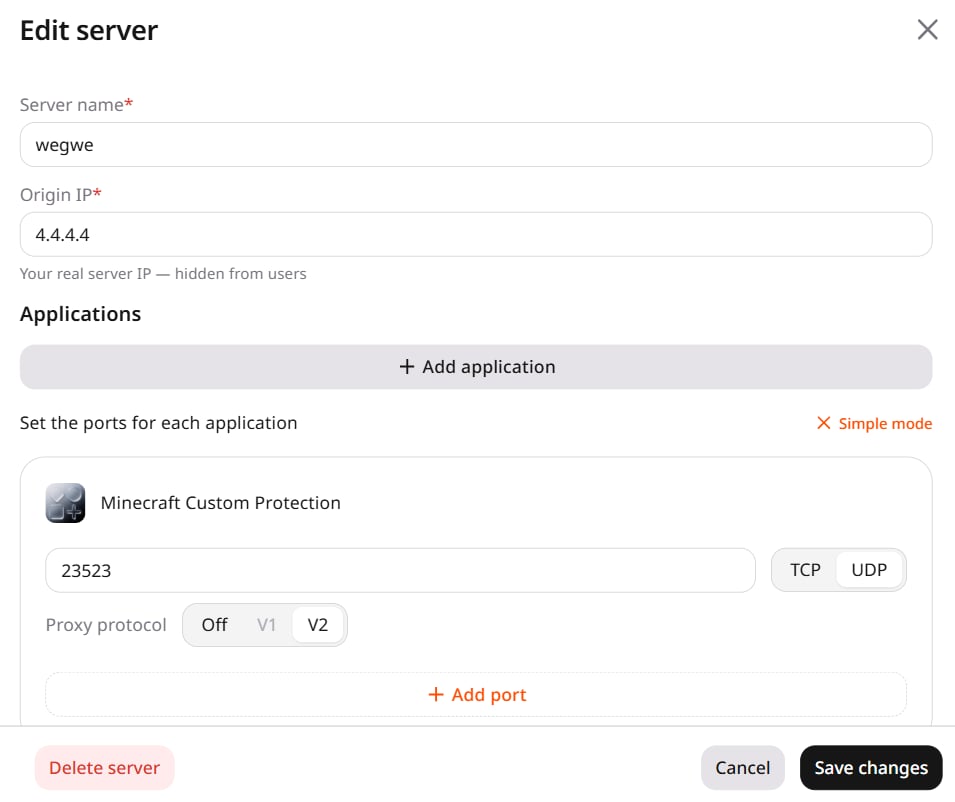

Click Edit protection on the server card to open the Edit server panel. The panel supports the following changes:

• Server name — rename the server.
• Origin IP — change the origin server address.
• Applications — add or remove application profiles. To remove an application, delete all its ports.
• Ports — add or remove ports and select the protocol (TCP or UDP).
• Proxy protocol — enable PROXY protocol v1 or v2 for individual ports.

Click Save changes.

​

Delete a server

Click Delete server inside the edit panel. A confirmation dialog appears with the server name and the message “This will permanently remove [name] and all its application configurations.” Click Delete to confirm. Alternatively, click Delete protection on the server card in the Protected servers list and confirm in the same dialog.

​

Monitor traffic

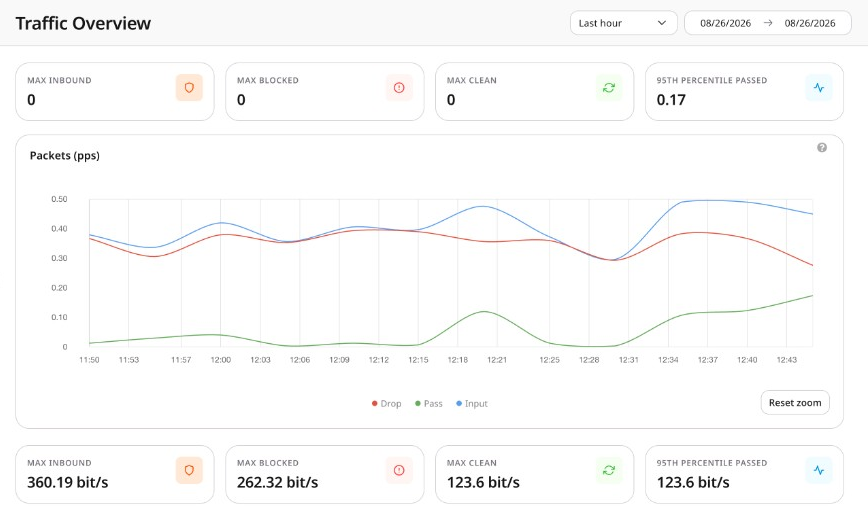

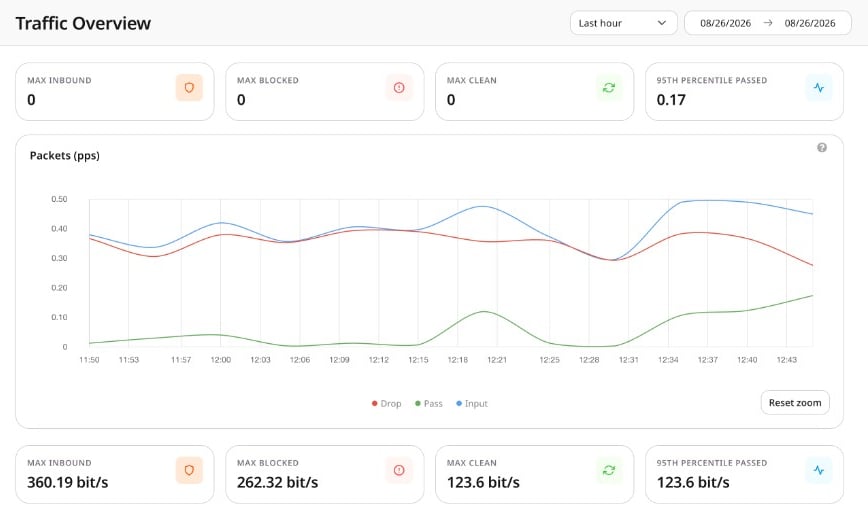

Traffic Overview (Security → Edge Proxy → Traffic Overview) displays aggregated traffic across all active servers.

​

Metrics

The page shows four metrics for packets (pps) and bits (bps), and two charts — Packets (pps) and Bits (bps) — each plotting Input (all received), Drop (blocked), and Pass (forwarded to origin). Use the dropdown to select a time range from one hour to three months, or set a custom range with the date fields.
